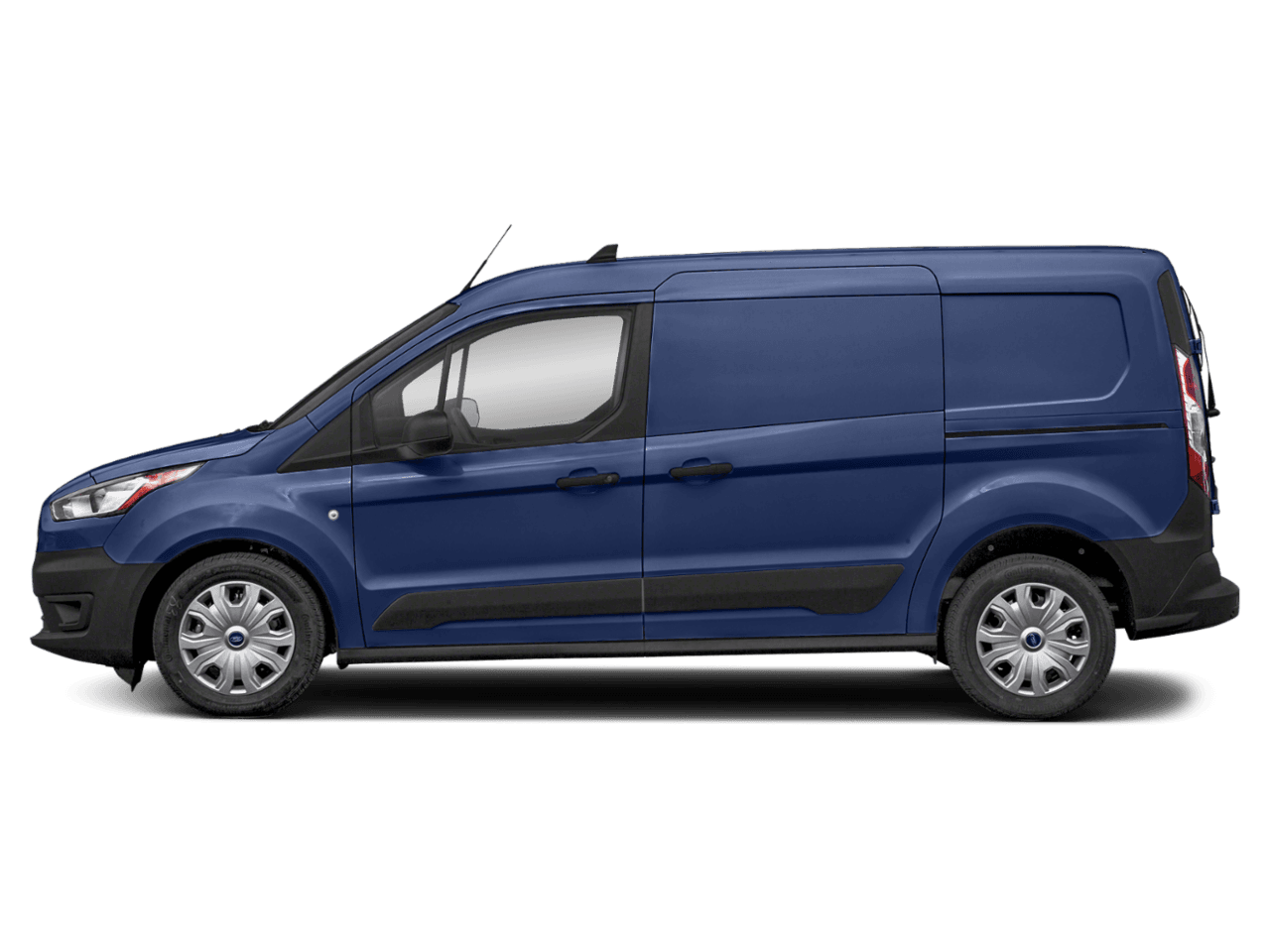

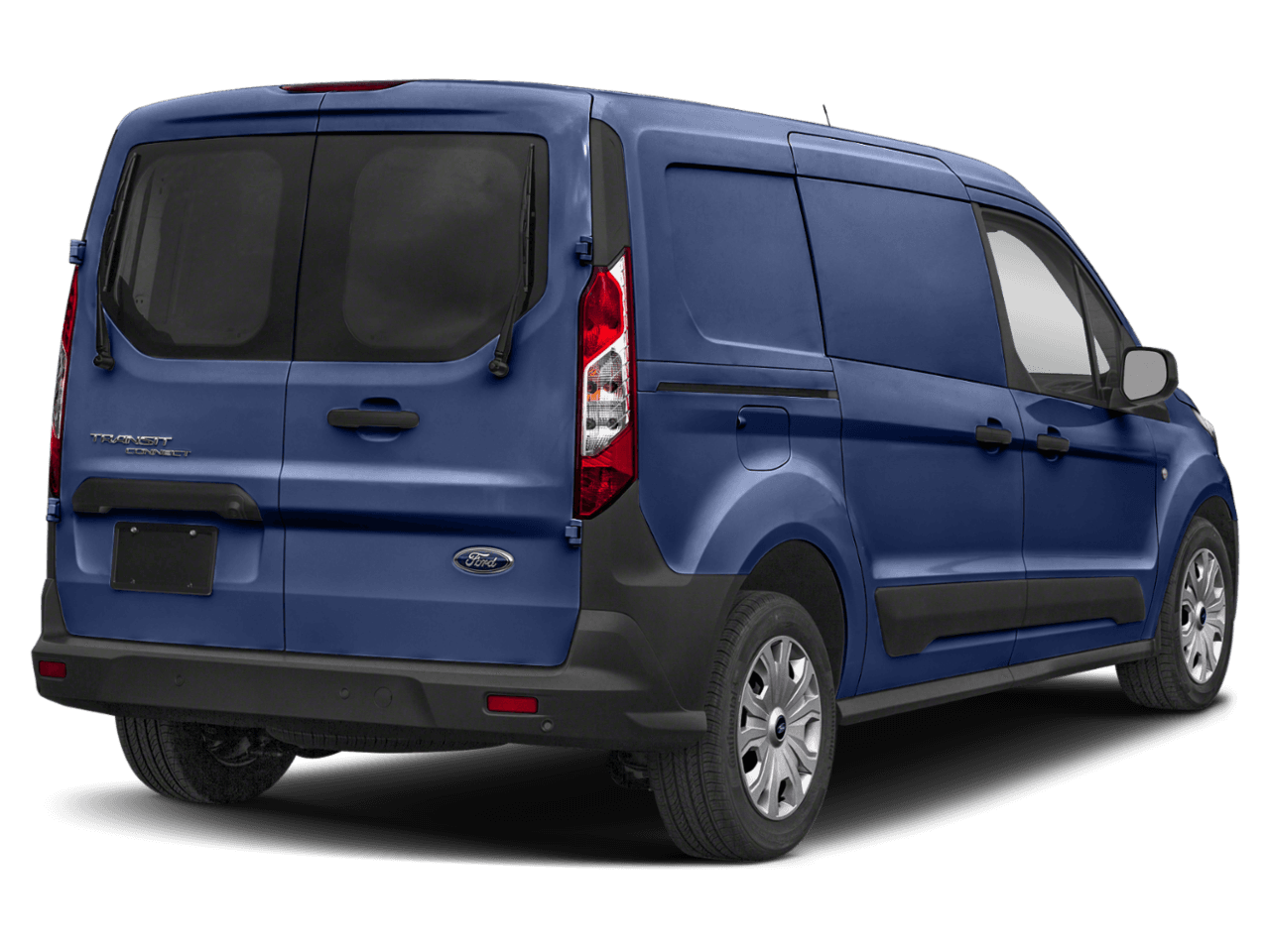

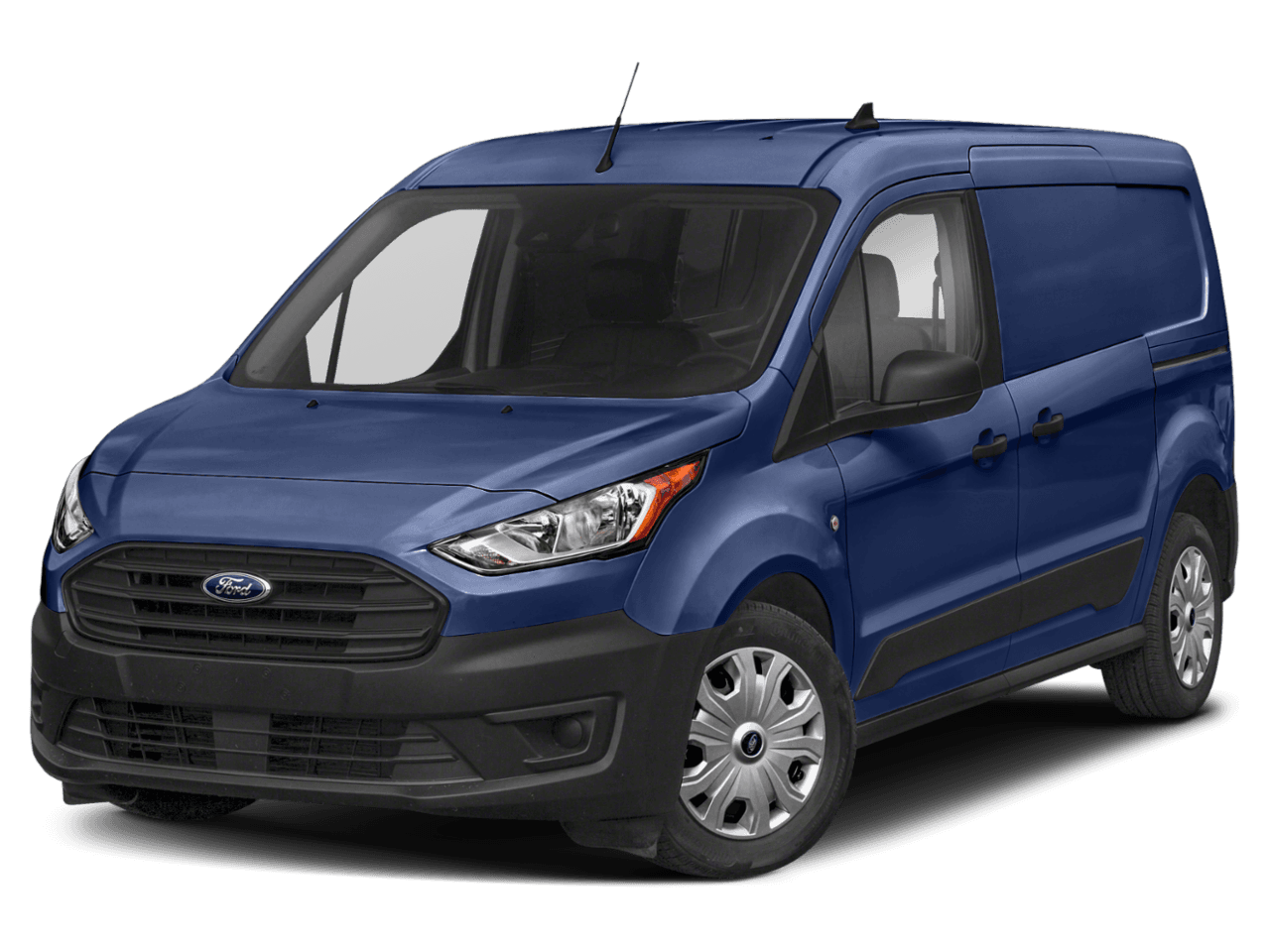

2021 Ford Transit Connect Van
XL SWB w/Rear Liftgate
MSRP: $24,655
Previous
Next
Trims
2021 Ford Transit Connect Van XL SWB w/Rear Symmetrical Doors
MSRP: $24,655
2021 Ford Transit Connect Van XL SWB w/Rear Liftgate
MSRP: $24,655
2021 Ford Transit Connect Van XLT SWB w/Rear Symmetrical Doors
MSRP: $27,080
2021 Ford Transit Connect Van
Standard Equipment
- Heavy Duty Battery, -inc: (80-amp; 800CCA)
2021 Ford Transit Connect Van Available Options
- Engine: 2.0L GDI I-4 Gas, -inc: auto start/stop technology and EcoMode, Heavy Duty Battery, (80-amp; 800CCA), (STD)
- Engine: 2.0L GDI I-4 Gas w/98A, -inc: auto start/stop technology and EcoMode, Heavy Duty Battery, (80-amp; 800CCA)
- Engine: 2.5L iVCT I-4 Gas, -inc: 3.21 Axle Ratio, Standard Duty Battery, 60 amp – 590 CCA
- Transmission: 8-Speed SelectShift Automatic, (STD)
- Transmission: 6-Speed SelectShift Auto
- Order Code 100A
- 3.80 Axle Ratio, (STD)
- 3.21 Axle Ratio
- Race Red
- Silver
- Dark Blue
- Frozen White
- Agate Black Metallic
- Ebony, Vinyl Front Bucket Seats, -inc: 6-way manual driver seat (fore/aft, up/down and lever recline) and 4-way manual passenger seat (fore/aft and lever recline) w/fold-flat back
- Ebony, Cloth Front Bucket Seats, -inc: 6-way manual driver seat (fore/aft, up/down and lever recline) and 4-way manual passenger seat (fore/aft and lever recline) w/fold-flat back
- Flex Fuel Capability (FFV)
- Engine Block Heater
- 220-Amp Heavy Duty Alternator
- CNG/LPG Engine Prep Package
- Trailer Tow Package, -inc: trailer tow hitch w/trailer sway control (class 1, 2000 lbs capability, trailer module and 4-pin connector)
- Wheels: 16″ Shadow Silver-Painted Styled Steel, -inc: hubcaps/center ornaments/non-locking lugs (no wheel covers), *PRICE TO FOLLOW*
- Wheels: 16″ 5-Spoke Premium Luster Nickel-Painted, -inc: Premium-alloy
- Tire Repair Kit, -inc: In lieu of full-size spare wheel, *CREDIT*
- Black Power Adjust Heated Mirrors w/Manual Fold, -inc: molded-in-color skull caps
- Large Rear View Mirror Housing, -inc: Recommended for trailer tow
- 2nd Row Fixed Glass on Both Side Doors, -inc: steel mesh window guards
- 2nd Row Fixed Glass on Passenger Side Door Only, -inc: steel mesh window guard
- Dark Tinted Glass, -inc: privacy glass upgrade from normal tinted glass (excludes front row)
- Rear Window Defroster
- Quickclear Electric Windshield Defroster, -inc: Black Power Adjust Heated Mirrors w/Manual Fold, molded-in-color skull caps
- Front Splash Guards/Mud Flaps
- Daytime Running Lamps (DRLs), -inc: Non-configurable, Note: User-Configurable Daytime Running Lamps already standard on all versions
- Radio: SYNC 3 w/o Navigation, -inc: FordPass Connect/telematics modem w/WiFi hotspot connects up to 10 devices ( a trial subscription of 3 months or 3 gigabytes – whichever comes first, wireless service plan required after trial subscription ends), remotely start, lock and unlock vehicle, schedule specific times to remotely start vehicle, locate parked vehicle and check vehicle status ( service for 1 year from the vehicle sale date as recorded by the dealer), 6.5″ LCD touch screen, AM/FM stereo receiver, SiriusXM satellite radio, 911 Assist, AppLink, Apple CarPlay compatibility, Android Auto compatibility, 2 smart-charging USB ports and 4 front speakers (2 front door speakers and 2 A-pillar tweeters), Compass Display, Cruise Control, SYNC 3 Communications & Entertainment System, VHR, SYNC services, Bluetooth, steering wheel controls and auxiliary input jack
- Radio: SYNC 3 w/Navigation, -inc: FordPass Connect/telematics modem w/WiFi hotspot connects up to 10 devices ( a trial subscription of 3 months or 3 gigabytes – whichever comes first, wireless service plan required after trial subscription ends), remotely start, lock and unlock vehicle, schedule specific times to remotely start vehicle, locate parked vehicle and check vehicle status ( service for 1 year from the vehicle sale date as recorded by the dealer), 6.5″ LCD touch screen, AM/FM stereo receiver, SiriusXM satellite radio, HD Radio, 911 Assist, AppLink, Apple CarPlay compatibility, Android Auto compatibility, 2 smart-charging USB ports and 4 front speakers (2 front door speakers and 2 A-pillar tweeters), Compass Display, Cruise Control, 4-Spoke Leather-Wrapped Steering Wheel, satin chrome shells, SYNC 3 Communications & Entertainment System, VHR, SYNC services, Bluetooth, steering wheel controls and auxiliary input jack
- Single-Slot CD Player
- 6-Way Manual Driver Seat/4-Way Manual Pass Seat, -inc: driver fore/aft, up/down and lever recline w/manual lumbar and passenger seat fore/aft and lever recline w/fold-flat back
- Key Fobs (2 Additional)
- Cruise Control, w/o 58Y-inc: 4-Spoke Steering Wheel, satin chrome shells
- Front All-Weather Floor Mats
- Roof Rails
- LED Rear Cargo Area Light, -inc: In place of the standard rear cargo area light
- Wireless Charging
- BLIS (Blind Spot Information System), -inc: cross-traffic alert, PowerFold Heated Exterior Mirrors w/Power Adjust, Power Front-Row Windows w/One-Touch Up/Down
- Reverse Sensing System
- Smoker’s Package, -inc: Comes w/a cigarette lighter and ash cup, The cigarette lighter replaces the 12V powerpoint
- Composite Bulkhead
- Composite Bulkhead w/Window
- MyKey, -inc: Cruise Control
- Perimeter Anti-Theft Alarm System
- COV Required, *PRICE TO FOLLOW*
- Priced DORA
2021 Ford Transit Connect Van Consumer Information
2021 Ford Transit Connect Van Technical Specifications
- Engine: 2.0L GDI I-4 Gas
- (STD)
- Engine: 2.0L GDI I-4 Gas w/98A
- Engine: 2.5L iVCT I-4 Gas
- Engine Type: 2.0L GDI I-4 Gas
- SAE Net Horsepower: 162
- SAE Net Torque: 144
- EPA Fuel Economy Est – Hwy: 27 MPG
- EPA Fuel Economy Est – City: 24 MPG
- Fuel Economy Est-Combined: 25 MPG
- Engine Order Code: 992-1
- Engine Type: Regular Unleaded I-4
- Displacement: 2.0 L/122
- Fuel System: Gasoline Direct Injection
- SAE Net Horsepower @ RPM: 162 @ 6500
- SAE Net Torque @ RPM: 144 @ 4500
- Engine Oil Cooler: None
- Fuel Tank Capacity, Approx: 15.8 gal
- Transmission: 8-Speed SelectShift Automatic
- (STD)
- Transmission: 6-Speed SelectShift Auto
- Drivetrain: Front Wheel Drive
- Gross Axle Wt Rating – Front: 2700 lbs
- Gross Axle Wt Rating – Rear: 2875 lbs
- Reserve Axle Capacity – Front: 576.00 lbs
- Reserve Axle Capacity – Rear: 1418.00 lbs
- First Gear Ratio (:1): 4.69
- Second Gear Ratio (:1): 3.31
- Third Gear Ratio (:1): 3.01
- Fourth Gear Ratio (:1): 1.92
- Fifth Gear Ratio (:1): 1.45
- Sixth Gear Ratio (:1): 1.00
- Final Drive Axle Ratio (:1): N/A
- Transfer Case Gear Ratio (:1), High: N/A
- Transfer Case Gear Ratio (:1), Low: N/A
- Axle Type – Front: Independent
- Axle Type – Rear: Semi-Independent
- Axle Ratio (:1) – Front: 3.80
- Axle Ratio (:1) – Rear: 3.80
- Seventh Gear Ratio (:1): 0.75
- Eighth Gear Ratio (:1): 0.62
- Gross Axle Weight Rating: 5575.00 lbs
- Reserve Axle Capacity: 1994.00 lbs
- Body Style: Mini-van, Cargo
- Tons/yr of CO2 Emissions @ 15K mi/year: 7.1
- Trans Order Code: 448
- Trans Type: 8
- Trans Description Cont.: Automatic w/OD
- Reverse Ratio (:1): 2.96
- Transfer Case Model: None
- Transfer Case Power Take Off: No
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Ground to Top of Load Floor: 23 in
- Rear Door Type: Liftgate
- Side Door Type: Sliding
- Head Room (in): 46.9
- Leg Room (in): 41.5
- Passenger Capacity: 2
- Front Head Room: 46.9 in
- Front Leg Room: 41.5 in
- Front Shoulder Room: 57.6 in
- Front Hip Room: 54.2 in
- Fuel Economy Est-Combined: 25
- Cruising Range – City: 379.20 mi
- Cruising Range – Hwy: 426.60 mi
- Standard Weight – Front: 0.00 lbs
- Standard Weight – Rear: 0.00 lbs
- Base Curb Weight: 3581 lbs
- Curb Weight – Front: 2124 lbs
- Curb Weight – Rear: 1457 lbs
- Option Weight – Front: 0.00 lbs
- Option Weight – Rear: 0.00 lbs
- As Spec’d Curb Weight: 3581.00 lbs
- Turning Diameter – Curb to Curb: 38.3 ft
- Curb Weight: 3581.00 lbs
- Total Option Weight: 0.00 lbs
- Gross Vehicle Weight Rating: 5130.00 lbs
- As Spec’d Payload: 1549.00 lbs
- Maximum Payload Capacity: 1549.00 lbs
- Cargo Volume: 123.2 cu ft
- Payload Weight Front: 0 lbs
- Payload Weight Rear: 0 lbs
- Front Tire Size: P215/55HR16
- Rear Tire Size: P215/55HR16
- Spare Tire Size: Full-Size
- Front Wheel Size: 16 X 6.5 in
- Rear Wheel Size: 16 X 6.5 in
- Spare Wheel Size: Full-Size in
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material: Steel
- -inc: auto start/stop technology and EcoMode, Heavy Duty Battery, (80-amp; 800CCA)
- -inc: 3.21 Axle Ratio, Standard Duty Battery, 60 amp – 590 CCA
- Maximum Alternator Capacity (amps): 150
- Cold Cranking Amps @ 0deg F (Primary): 800
- Cold Cranking Amps @ 0deg F (2nd): 800
- Suspension Type – Front: Strut
- Suspension Type – Rear: Torsion Beam
- Steering Type: Rack-Pinion
- Steering Ratio (:1), Overall: N/A
- Steering Ratio (:1), On Center: N/A
- Steering Ratio (:1), At Lock: N/A
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Wheelbase: 104.8 in
- Length, Overall: 174.2 in
- Width, Max w/o mirrors: 72.2 in
- Height, Overall: 72 in
- Ground Clearance, Front: 5.4 in
- Ground Clearance, Rear: 5.4 in
- Body Length: 0.00 ft
- Cargo Area Length @ Floor to Seat 1: 71.8 in
- Cargo Box Width @ Wheelhousings: 48.7 in
- Cargo Box (Area) Height: 49.7 in
